Specifications

PDF
AXL.LPTM.001
Controller
Display
TFT 5.5 inch LCD
Minimum Display Unit
0,01 to 100μm (7-level selectable)
Diplay Range
(plus minus) 99.99999 to (plus minus) 9999.9 mm
Measurement Position Monitor
Monitor Image
Tolerance Check Output Display
5-level LCD indicator
Alarm output
NPN open -collector output
5-level Comparator Output
NPN open-collector output for OUT1
Comparator Ready Output
NPN open-collector output for OUT2
Strobe Output
NPN open-collector output for OUT3
Synchronous Input
Non - voltage input for OUT1
Reset Input
Non - voltage input for OUT2
Auto-Zero Input
Non - voltage input for OUT3
Program Selection Input
Non-voltage input x 4 inputs
Statistical Processing Input
Non - voltage input for OUT1
Analog Output
10V x 2 outputs
Sub Mode
5-level comparator output
NPN open-collector output for OUT2
Comparator ready output
NPN open-collector output for OUT2
Strobe output
NPN open-collector output for OUT2
Statistical processing output
NPN open-collector output x 2 outputs
Function output
Selectable from focus, area check, and differential, NPN open-collector output x 2 outputs
BCD Mode
BCD output
Measurement data output (Sign + 7 digits), OUT1/OUT2 selectable, NPN open-collector output
BCD selection output
NPN open-collector output
BCD selection input
Non-voltage input
Synchronous Input
Non - voltage input for OUT2
Reset Input
Non - voltage input for OUT2
Auto-Zero Input
Non - voltage input for OUT2
Statistical Processing Input
Non - voltage input for OUT2
RS-232C Interface
Measurement data output and control I/O, printer (Baud rate can be selected uo to 115200 bps)
Video Output
Conforming to the NTSC system (PIN connector)
Major Functions
Simultaneous measurement, Area designation, Calculation, Averaging, Calibration, 16-program memory, Measurement modes, Auto-zero, Print-out, Abnormal value elimination, Transparent object measurement, Measurement point display, Group comparison, Unacceptable value history, Trend display, Statistical processing, Mutual interference prevention, Application function, etc.
Power Supply Voltage
24 VDC ±10%
Current Consumption
1.2 A max.
Enclosure Rating
IP64 (Panel surface only)
Ambient Temperature
0 to +40°C
Relative Humidity
35 to 85%, (No condensation)
Measuring Heads
Measuring Range
0,3 - 30mm
Smalest Detectable Object
0,3mm
Light Source
GaN green LED
CCD Scanning Range
approx. 33mm
Measurement Accuracy
(plus minus) 2μm
Repeatability
(plus minus) 0,15μm
Monitor Camera
2400 samples/sec
Enclosure Rating
IP64
Ambient Temperature
0 to +50℃
Relative Humidity
35 to 85%, (No condensation)
The AXL.LDM.001 complies with the following European standards: EMC Directive: EN61326-1D60 Low-voltage directive: EN60825-1 (LED class 1)/EN61010-1 (Overvoltage category II, Pollution degree 2)

Request a quote

Thank you for contacting AXL Imperial.
We'll get back to you shortly!
Close window

Curvature

Measurement

Machine

For in-line
industrial use

AXL.CRD.001

AXL.CRD.002

Precision.

Speed.

Versatility.

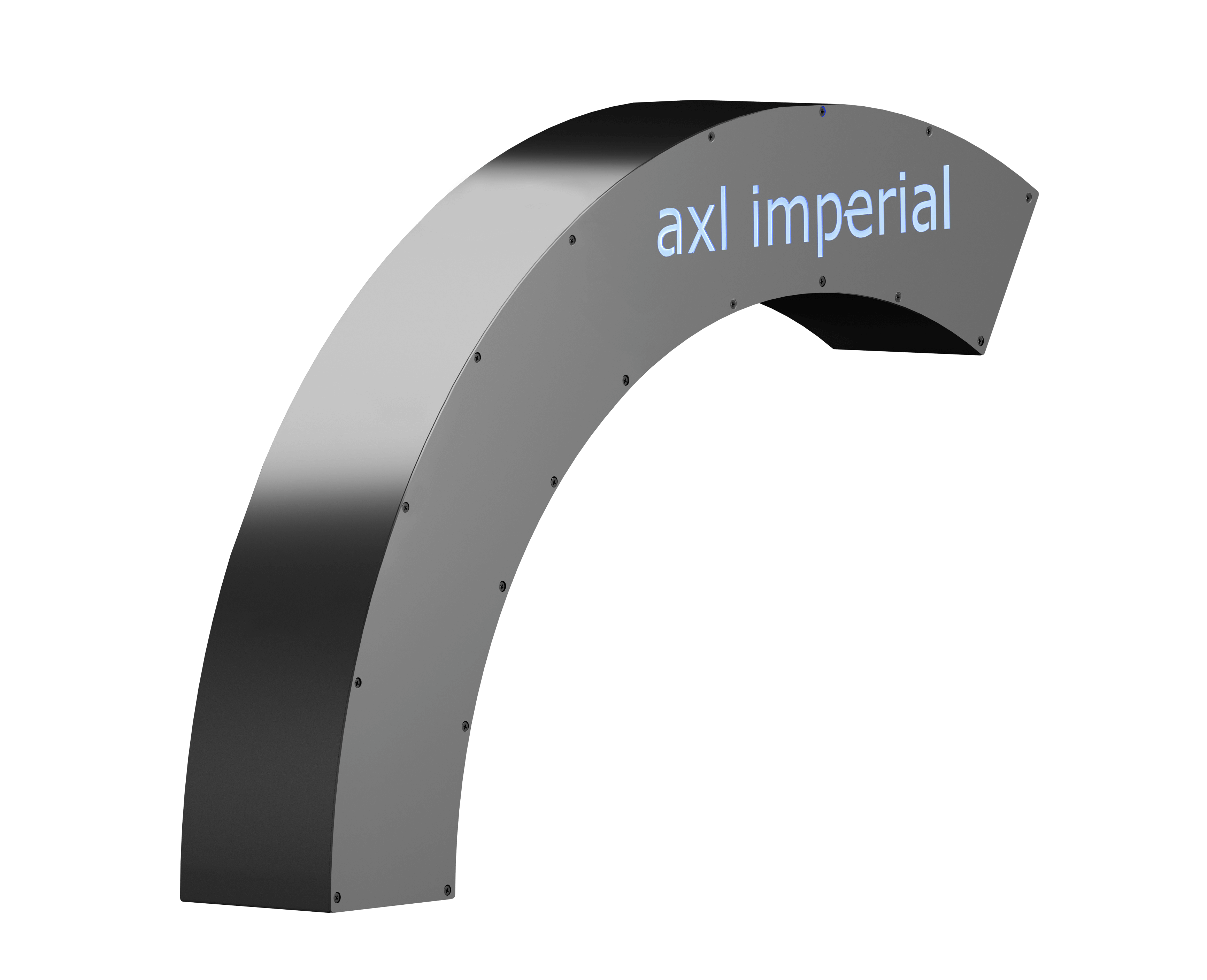

Curvature Measurement Machine
for in-line industrial use.

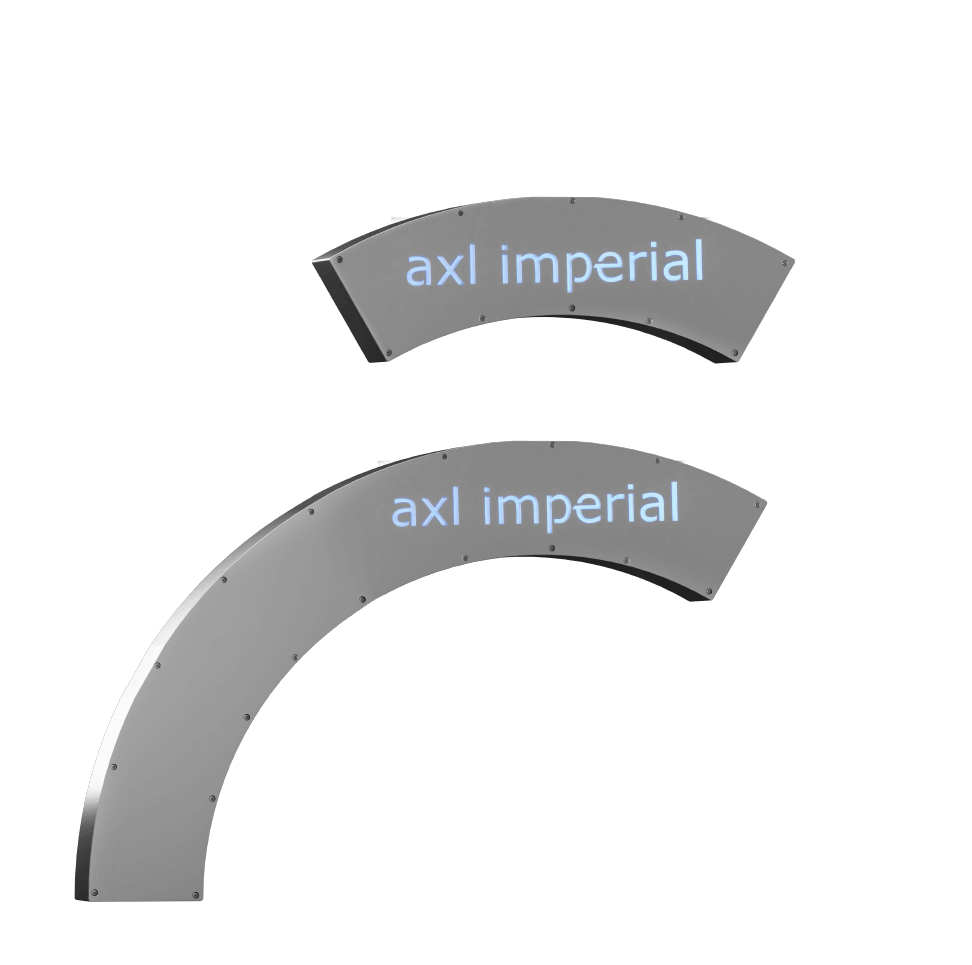

Available

in 2 formats

for table or

top mount

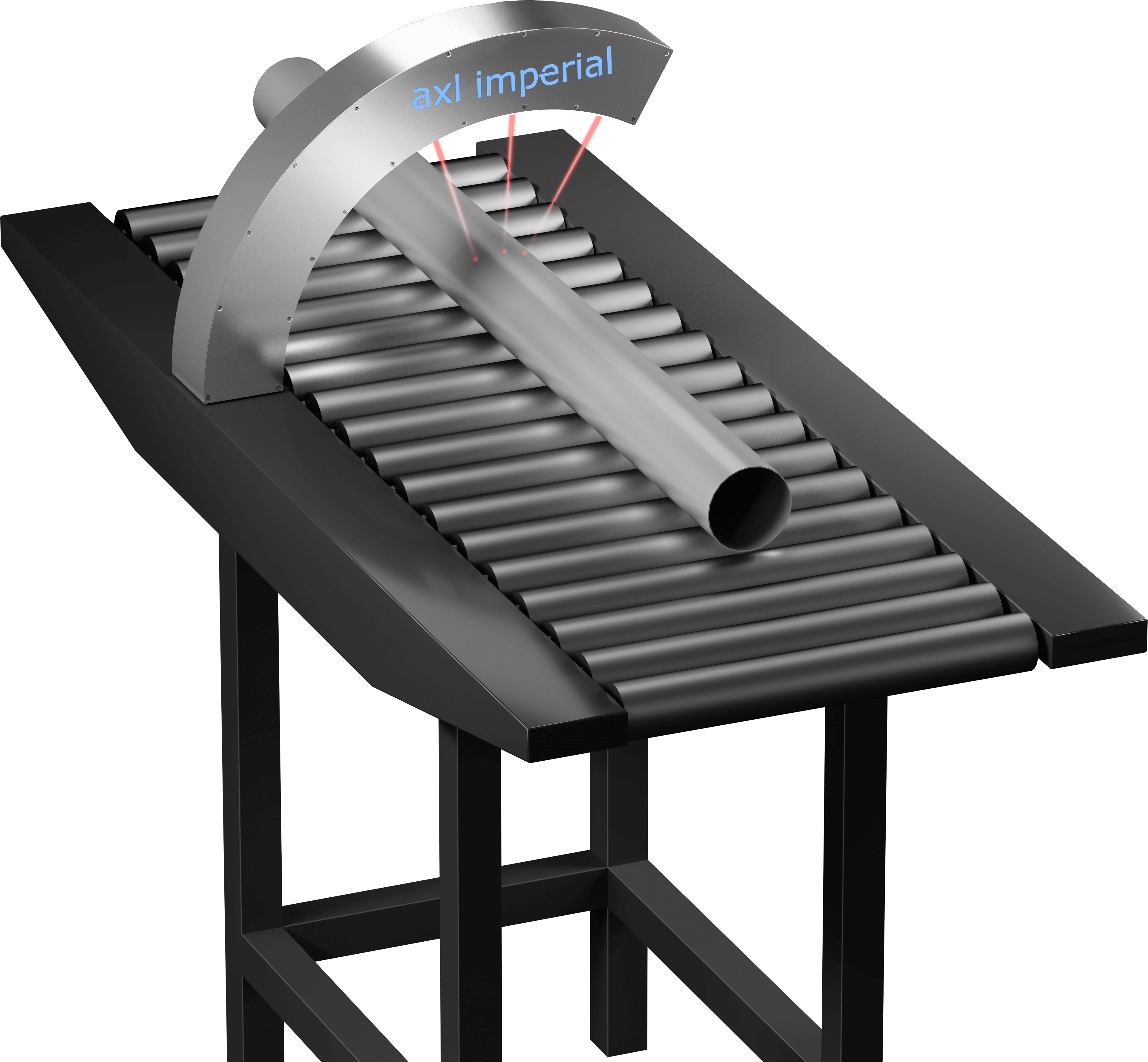

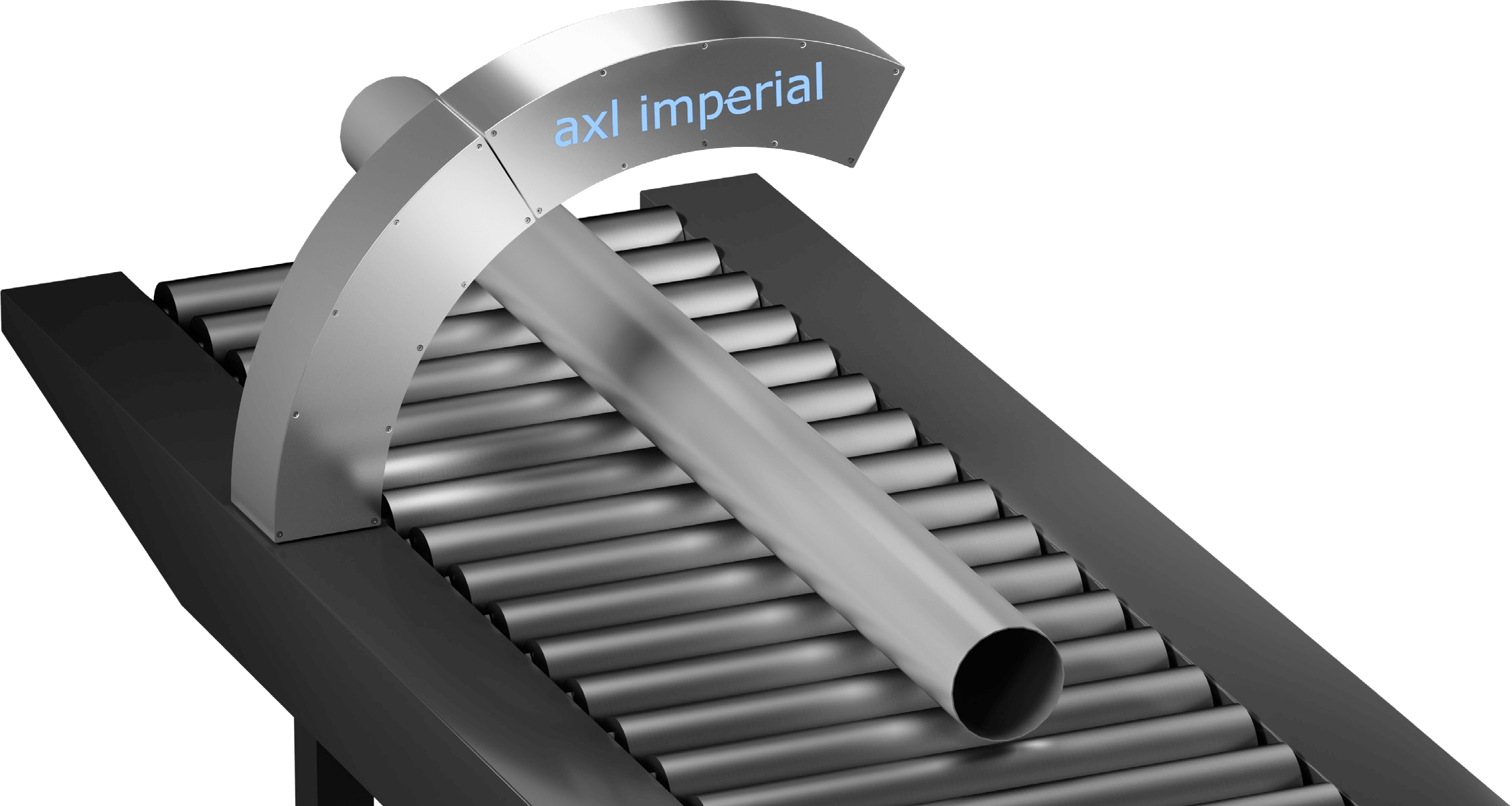

For scanning stationary
or in-transit cylindrical objects

Features

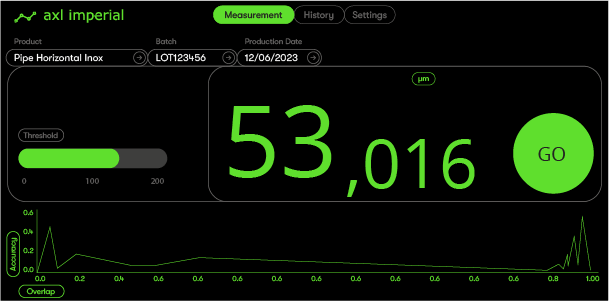

Interface

Large industrial touch screen
for easy operation in a wide
range of scenarios

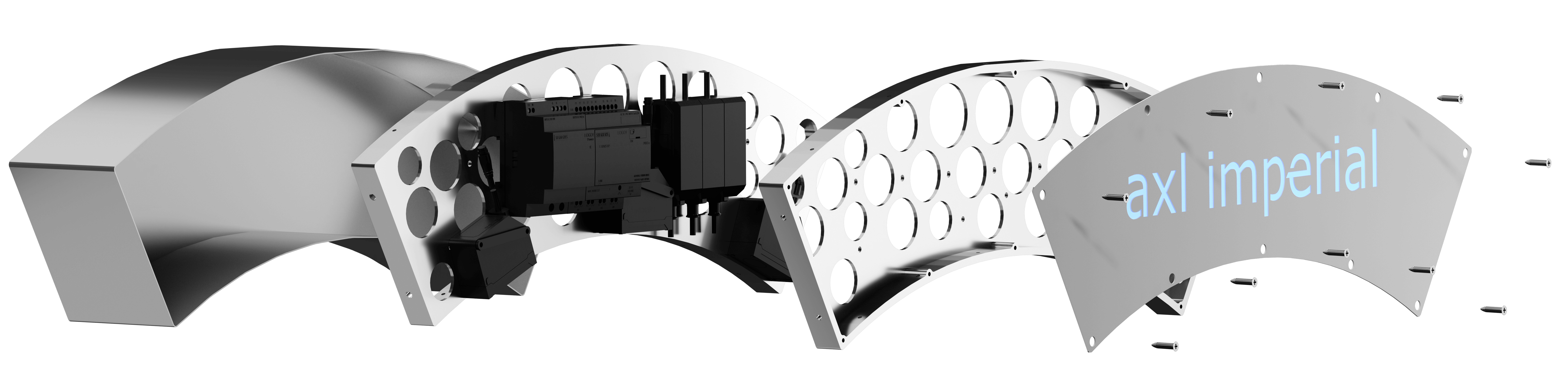

Heavy duty

Robust metal construction for harsh
industrial environments and
enhanced durability inside - out

Sensor
Protection

Protective and durable Plexiglas
covers the sensor heads protecting
from water, dust and oils

Ease of use

Strong materials have been used
both in the outer structure as well
as in the sensor heads to provide a
strong and durable ensemble for
hardcore, daily industrial use

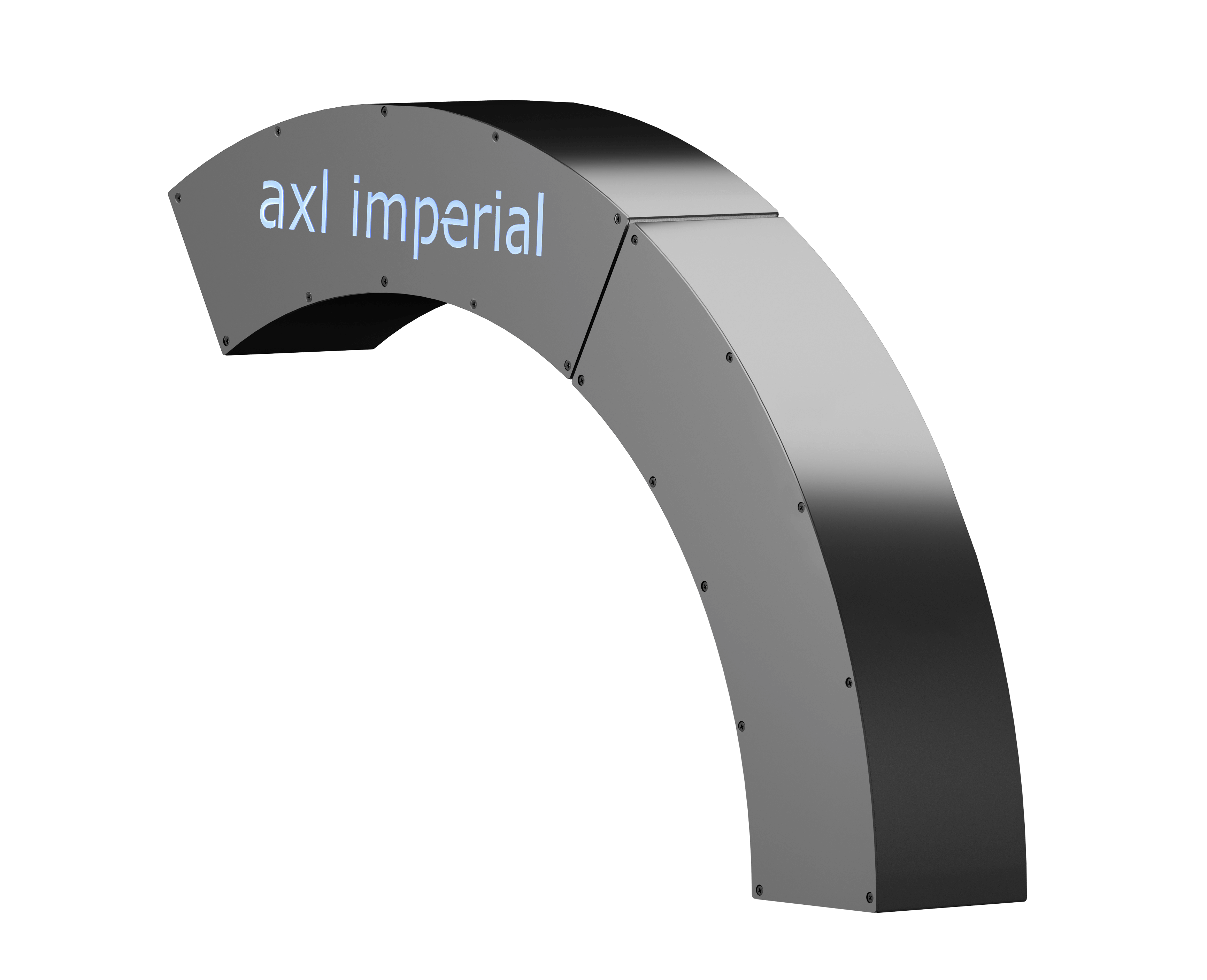

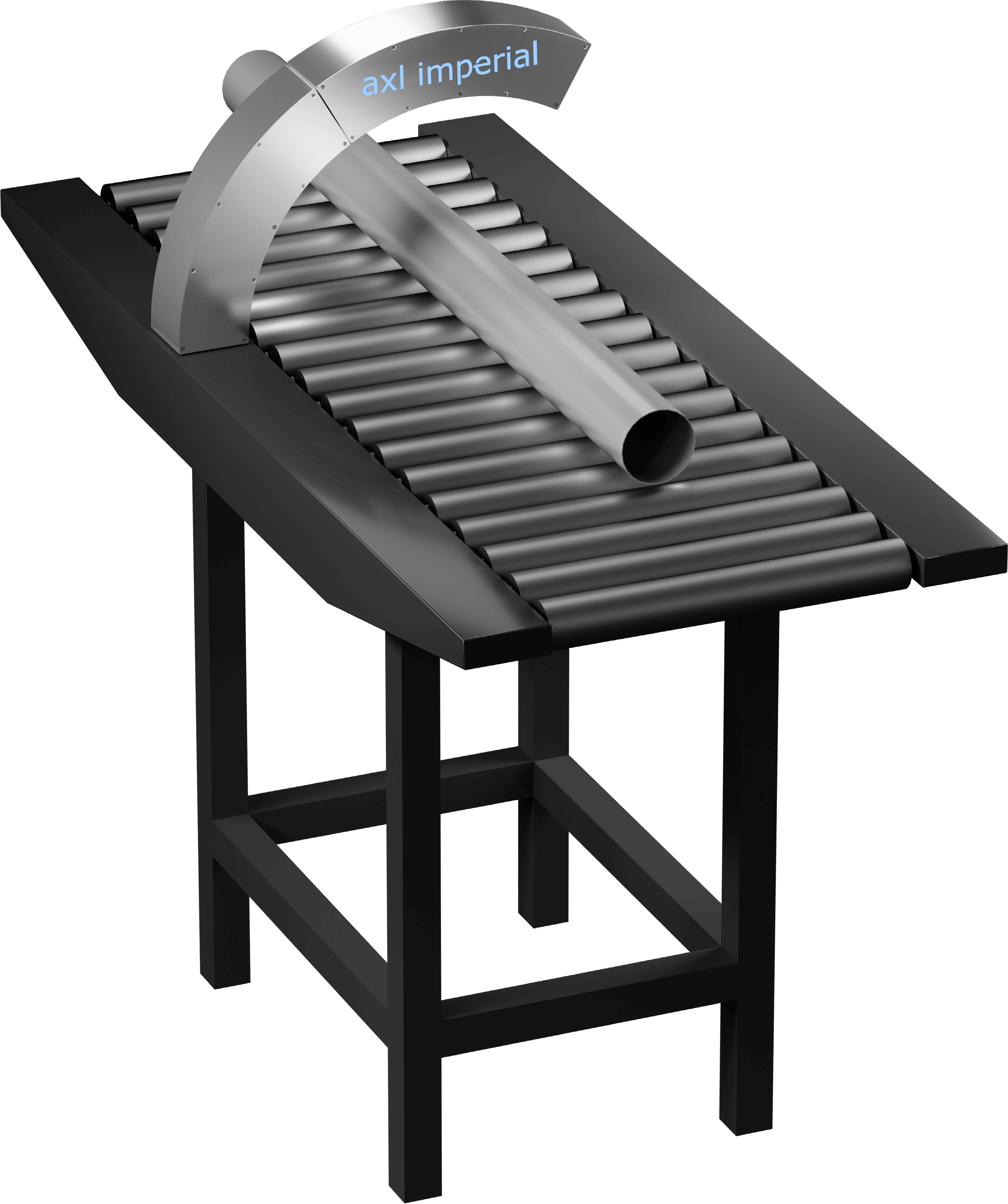

Compact size

Two mounting
options provided

Designed for integration
in production lines with
limited space availability.

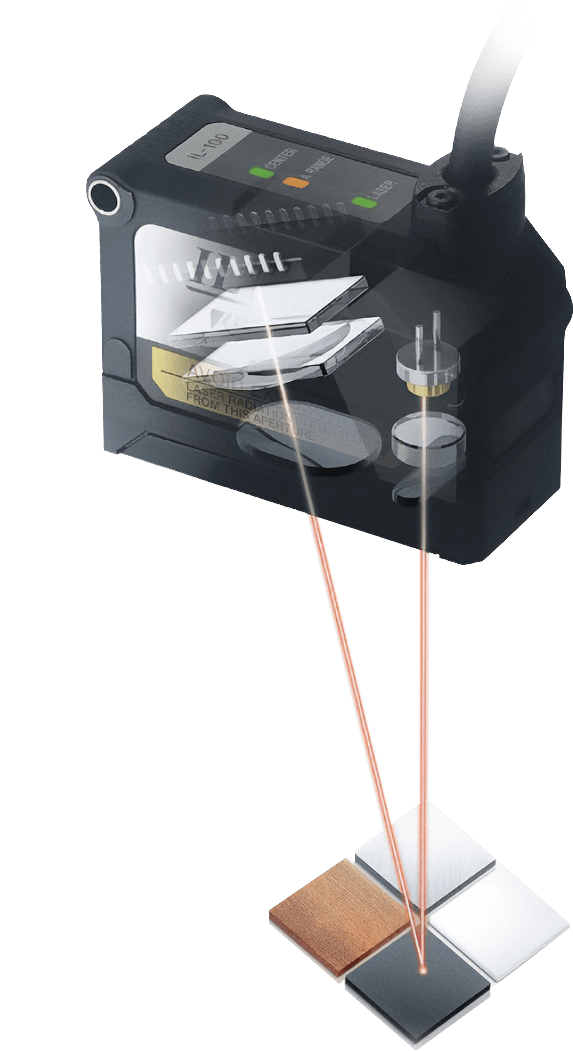

Sensors and
controllers
powered by

Keyence, one of the leading
sensor manufacturers worldwide
has provided the sensor heads
and controllers used to ensure
ultimate accuracy and top
performance.
keyence range

Stability
in rough
environments

Extreme resistance to shock,
drifts and temperature
variations. Innovative
measuring method ensures
accurate assessment
disregarding potential
misalignments.
axl imperial machines stability

Suitable
for all types
of materials.

axl imperial in factory

All kinds of
products.

axl imperial in factory

Take your manucafturing
to the next level

Contact us today

Discover

Address

64 Kifisou Street, Kifisia,
Postal Code 145 64, Greece
Telephone: +30 210 725 7712,
+30 210 725 7734


59-61 Akropoleos Ave. Strovolos, Nicosia,
Postal Code 2012, Cyprus
Telephone: +357 220 07580

E-mail: contact@axlimperial.com

Social

.
Large range in diameter of tubular objects curvature assessment
  • Interface
  • Heavy duty
  • Sensor protection
  • Ease of use
  • Compact size
Accurate measurement +
quick overall assessment
Down to
0,3μ
24/7 - 365
Uninterrupted operation
24 hours per day - 7 days a week.
Axl Imperial's products are designed
and built to allow continuous operation.
