Specifications

PDF

AXL.FMM.001

Controller

Display

TFT 5.5 inch LCD

Minimum Display Unit

0,01 to 100μm (7-level selectable)

Diplay Range

(plus minus) 99.99999 to (plus minus) 9999.9 mm

Measurement Position Monitor

Monitor Image

Tolerance Check Output Display

5-level LCD indicator

Alarm output

NPN open -collector output

5-level Comparator Output

NPN open-collector output for OUT1

Comparator Ready Output

NPN open-collector output for OUT2

Strobe Output

NPN open-collector output for OUT3

Synchronous Input

Non - voltage input for OUT1

Reset Input

Non - voltage input for OUT2

Auto-Zero Input

Non - voltage input for OUT3

Program Selection Input

Non-voltage input x 4 inputs

Statistical Processing Input

Non - voltage input for OUT1

Analog Output

10V x 2 outputs

Sub Mode

5-level comparator output

NPN open-collector output for OUT2

Comparator ready output

NPN open-collector output for OUT2

Strobe output

NPN open-collector output for OUT2

Statistical processing output

NPN open-collector output x 2 outputs

Function output

Selectable from focus, area check, and differential, NPN open-collector output x 2 outputs

BCD Mode

BCD output

Measurement data output (Sign + 7 digits), OUT1/OUT2 selectable, NPN open-collector output

BCD selection output

NPN open-collector output

BCD selection input

Non-voltage input

Synchronous Input

Non - voltage input for OUT2

Reset Input

Non - voltage input for OUT2

Auto-Zero Input

Non - voltage input for OUT2

Statistical Processing Input

Non - voltage input for OUT2

RS-232C Interface

Measurement data output and control I/O, printer (Baud rate can be selected uo to 115200 bps)

Video Output

Conforming to the NTSC system (PIN connector)

Major Functions

Simultaneous measurement, Area designation, Calculation, Averaging, Calibration, 16-program memory, Measurement modes, Auto-zero, Print-out, Abnormal value elimination, Transparent object measurement, Measurement point display, Group comparison, Unacceptable value history, Trend display, Statistical processing, Mutual interference prevention, Application function, etc.

Power Supply Voltage

24 VDC ±10%

Current Consumption

1.2 A max.

Enclosure Rating

IP64 (Panel surface only)

Ambient Temperature

0 to +40°C

Relative Humidity

35 to 85%, (No condensation)

Measuring Heads

Measuring Range

0,3 - 30mm

Smalest Detectable Object

0,3mm

Light Source

GaN green LED

CCD Scanning Range

approx. 33mm

Measurement Accuracy

(plus minus) 2μm

Repeatability

(plus minus) 0,15μm

Monitor Camera

2400 samples/sec

Enclosure Rating

IP64

Ambient Temperature

0 to +50℃

Relative Humidity

35 to 85%, (No condensation)

The AXL.LDM.001 complies with the following European standards: EMC Directive: EN61326-1D60 Low-voltage directive: EN60825-1 (LED class 1)/EN61010-1 (Overvoltage category II, Pollution degree 2)

Precision.

Speed.

Convenience.

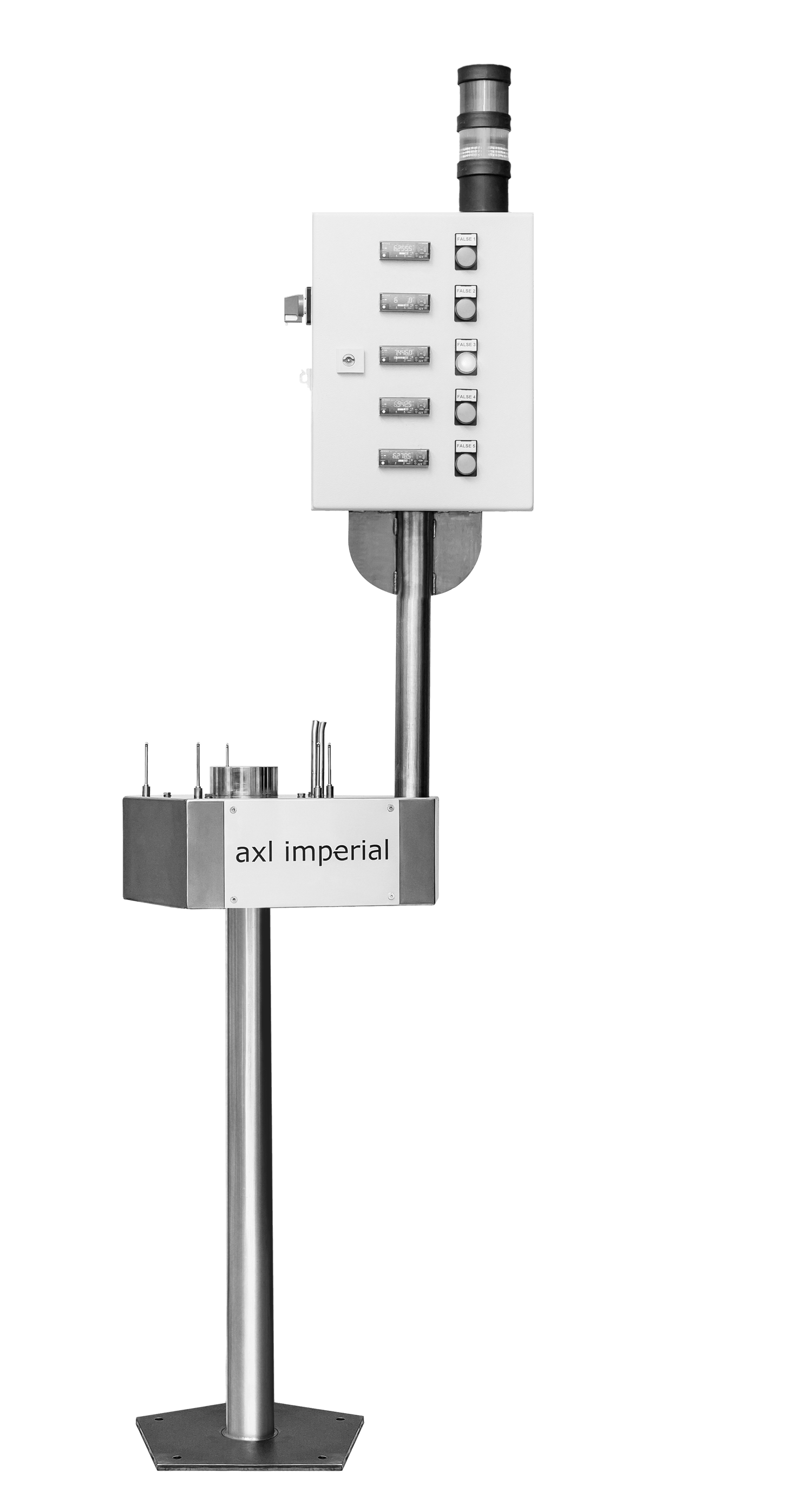

Flatness Measurement and Inspection

Machine for Sample Testing

during Production.

Fast + Precise

measurement

Down to

0,5μ

Manually place

the Production

Samples on the

machine

Ideal for Laboratory Testing

and Measurements

Features

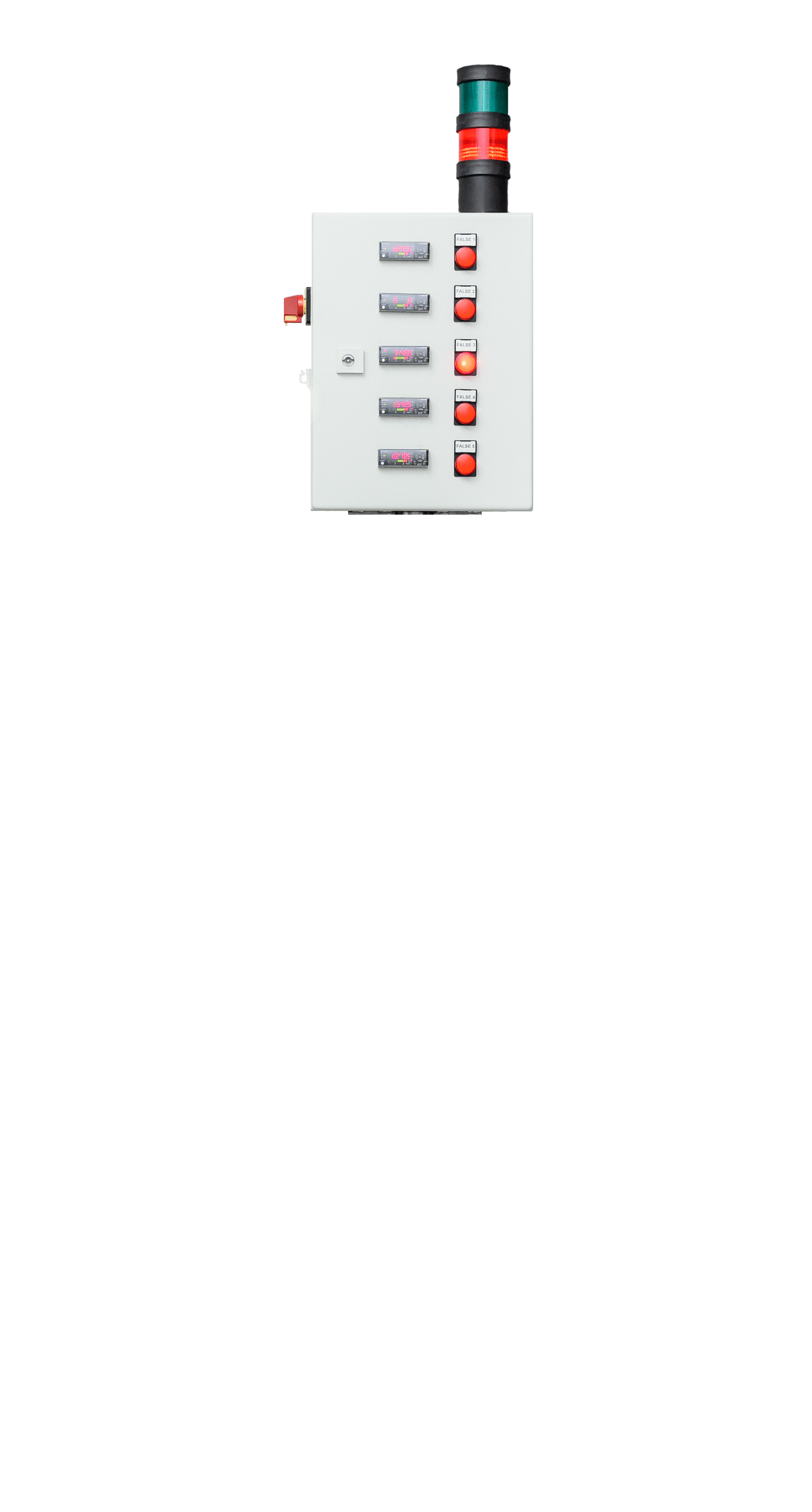

Data outputs

Unique sensor displays

with alarms for setting upper

and lower limits – Outputs

in Ethernet and PLC / PC

connectivity

Heavy duty

Robust metal construction for

harsh industrial environments

and enhanced durability

inside - out

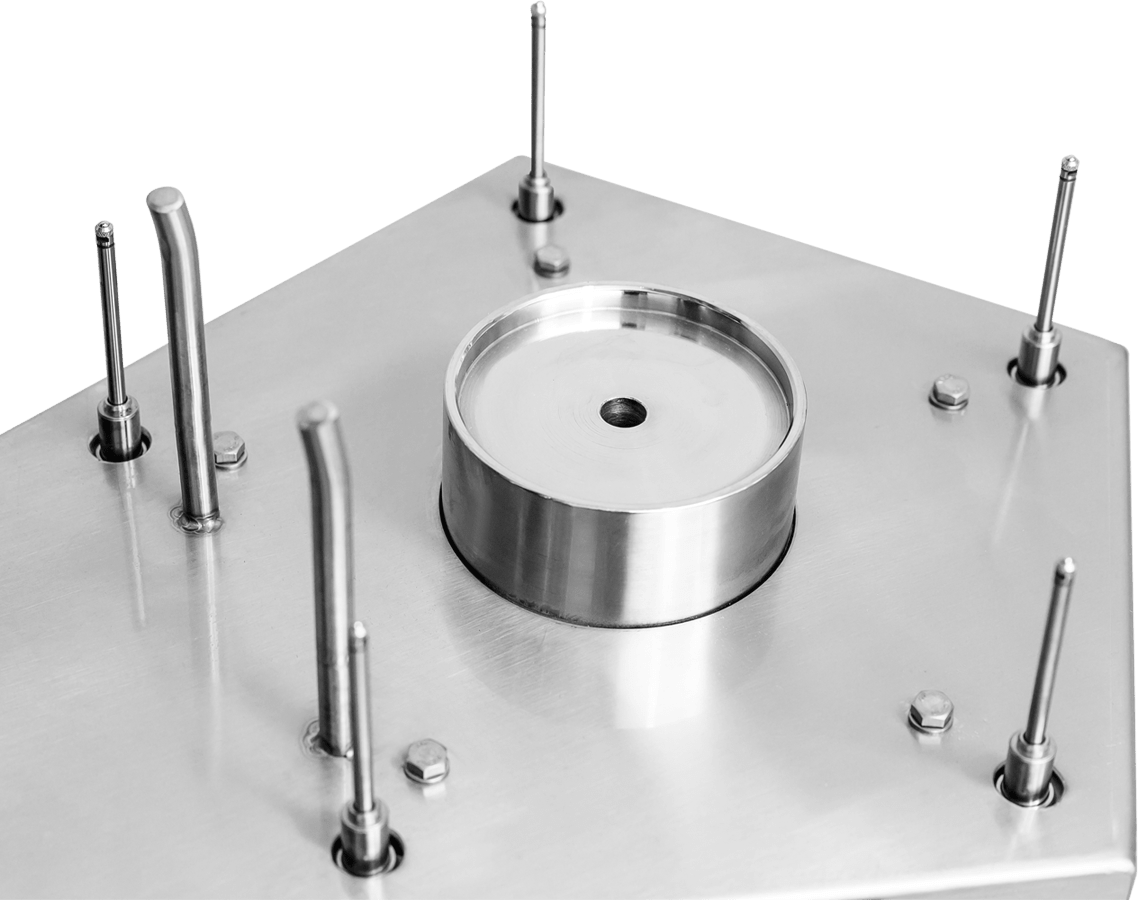

Accurate

sensors

Individual accurate sensors

taking height measurements

from different parts of the sample

in order to display flatness

Ease of use

No adjustments needed –

just place the sample by hand

on top of the machine

Compact size

Compact size to fit in all

production areas and

laboratory benches

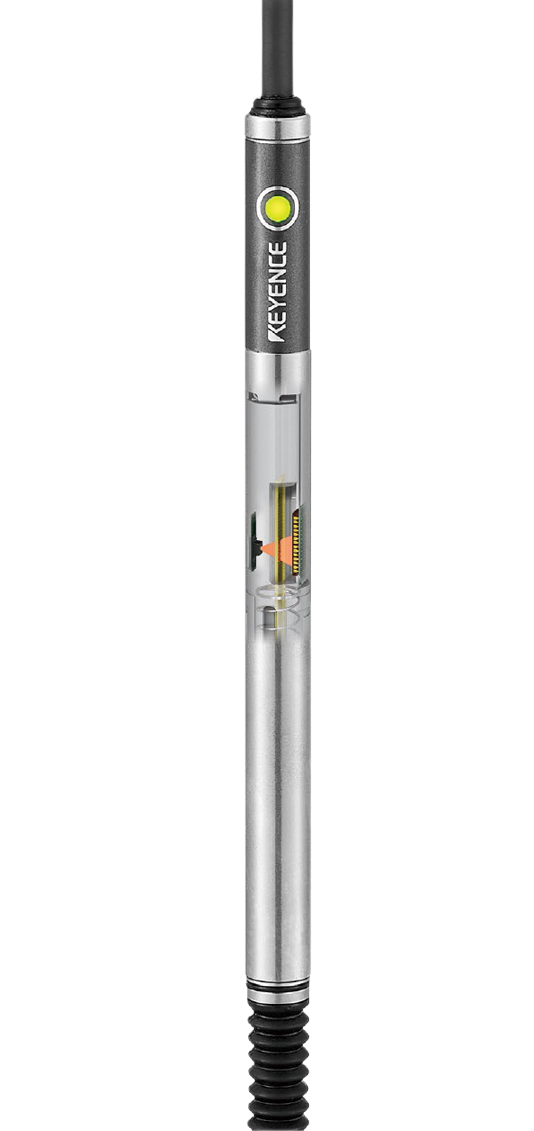

Sensors and

controllers by

Keyence, one of the leading

sensor manufacturers worldwide

has provided the sensor heads

and controllers used to ensure

ultimate accuracy and top

performance.

Stability

in rough industrial

environments

Extreme resistance to shock,

drifts and temperature

variations. Compact design

for laboratory - bench use.

Suitable

for all types

of materials.

All kinds of

products.

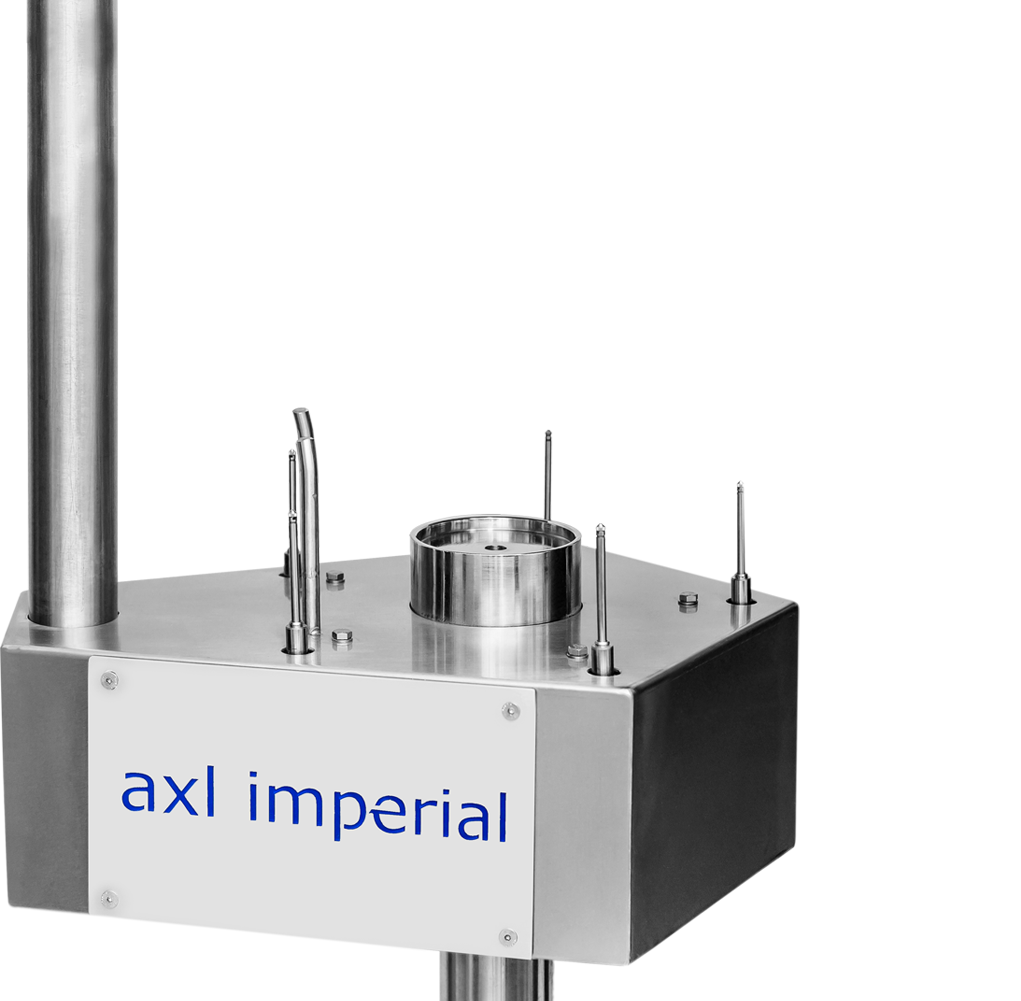

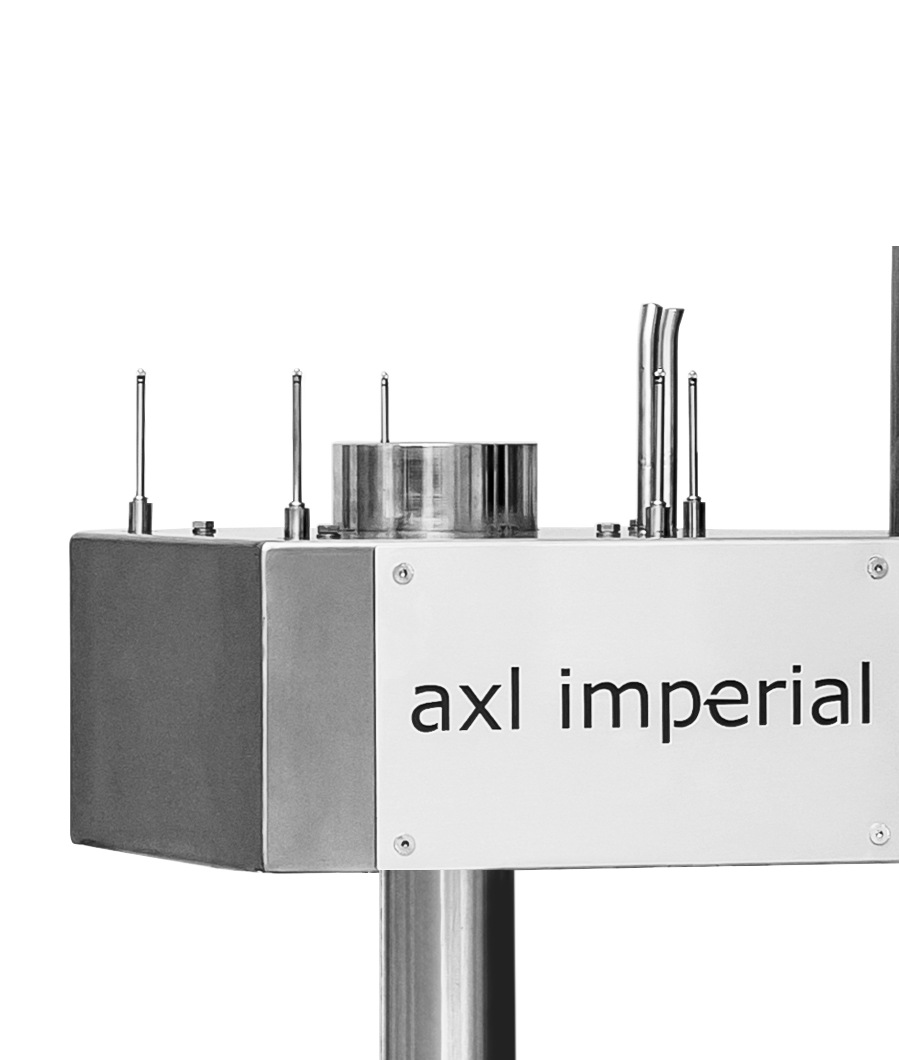

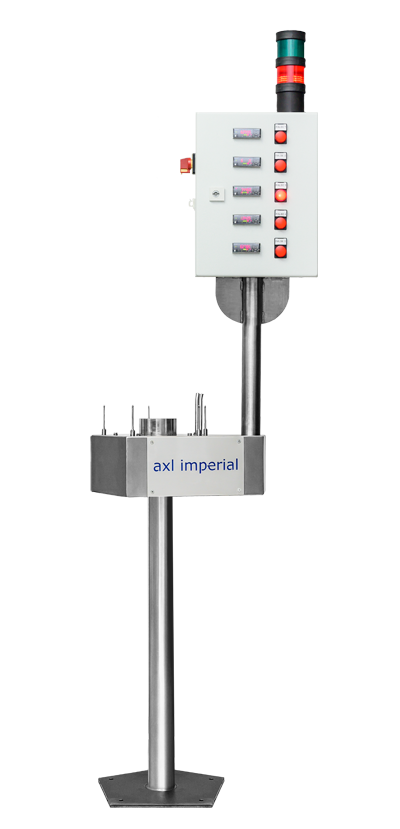

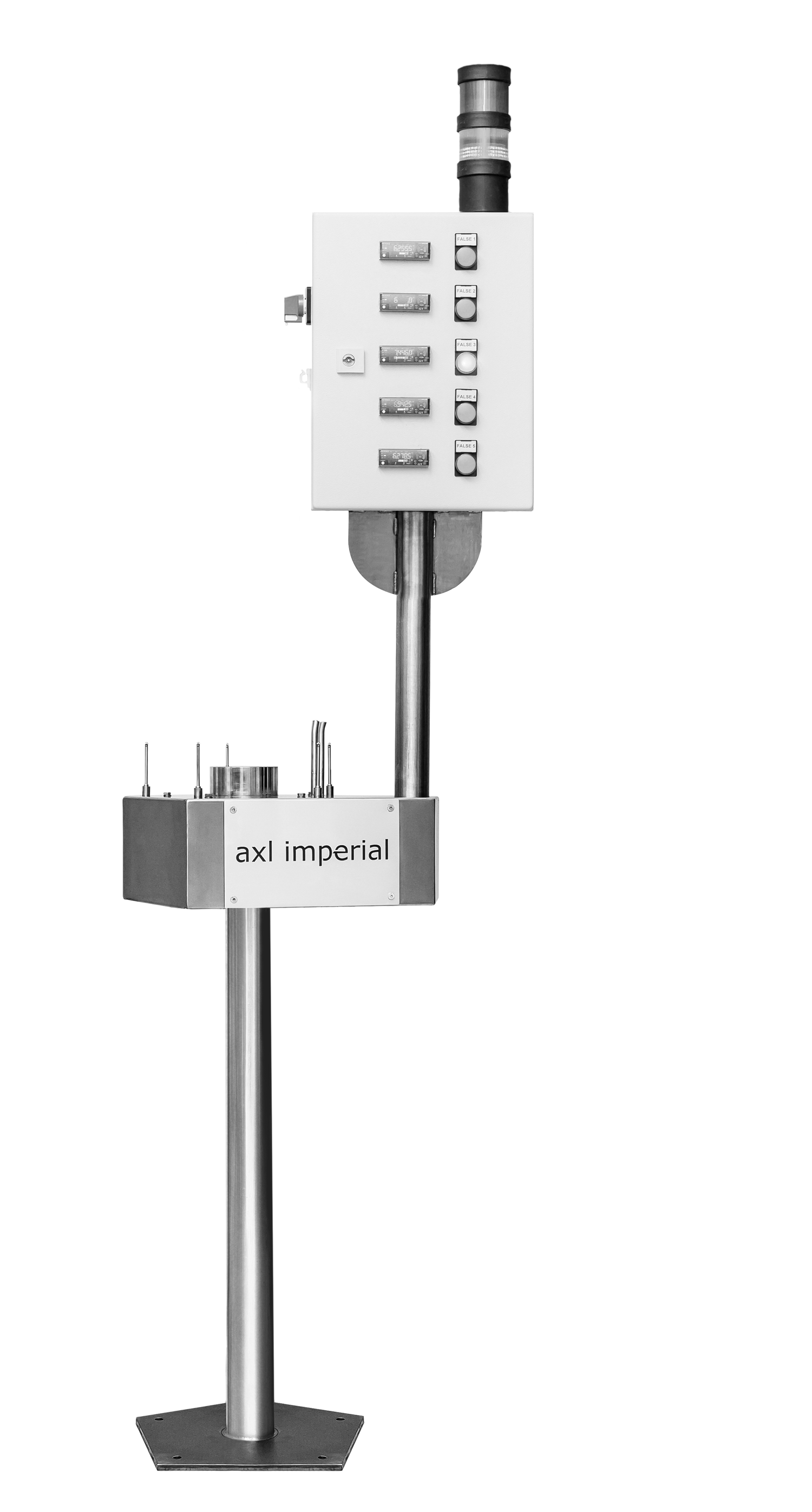

AXL.FMM.001

Specifications

Did you know?

AXL Imperial machines can be built to match your exact production needs in a large variety of measuring thicknesses and products. Send us your needs today and get a financial offer for a machine customized to your needs.

Specifications

Request a quote

Precision. Speed. Convenience.

Manually place the Production Samples on the machine

Features

Data outputs

Heavy duty

Accurate sensors

Ease of use

Compact size

Sensors and controllers by

Stability in rough industrial environments

Suitable for all types of materials. All kinds of products.

Did you know?
