Elite Robots proprietary software with embedded
palletizing wizar
Robot Arms Main Specs
CS620
PAYLOAD (KG)
20kg
RADIUS
1800mm
REPEATABILITY
±0.1mm
JOINTS ROTATION J1-J6
±360°
JOINTS SPEED
125°/s - 210°/s
TYPICAL TCP SPEED
2.0 m/s
IP RATING
IP65 (optional IP68)
TOOL I/O CONNECTORS
T1: M8, 8pin - T2: Ø 12.8mm, 4pin
TOOL I/O POWER SUPPLY
T1: 0 / 12V / 24V; 3A / 2A / 1A - T2: 24 V; 5A
CS625
PAYLOAD (KG)
25kg
RADIUS
1500mm
REPEATABILITY
±0.08mm
JOINTS ROTATION J1-J6
±360°
JOINTS SPEED
125°/s - 210°/s
TYPICAL TCP SPEED
2.0 m/s
IP RATING
IP65 (optional IP68)
TOOL I/O CONNECTORS
T1: M8, 8pin - T2: Ø 12.8mm, 4pin
TOOL I/O POWER SUPPLY
T1: 0 / 12V / 24V; 3A / 2A / 1A - T2: 24 V; 5A
Product Items
PALLETIZING CABINET
Shipping dimensions: 1600mm × 1400mm x 1200mm
Net weight (without robot arm): 560 kg*
ROBOT ARM
CS620 / CS625
CONTROLLER
CS OEM controller
END OF ARM TOOL
100×200mm sponge vacuum pad/
200×200mm bellows type (adjustable ±30)
(Customizable version also available)
CONVEYOR
Customizable (depending on working environment)
Repeatability
(plus minus) 0,15μm
Monitor Camera
2400 samples/sec
Enclosure Rating
IP64
Ambient Temperature
0 to +50℃
Relative Humidity
35 to 85%, (No condensation)
Close
Thank you for contacting AXL Imperial.
We'll get back to you shortly!
Close window
Robotic Palletizer Device
High payload.
Up to 10 boxes/min.
Ease of use.
ROI <12 months.
Everything you need for
Streamlined packaging operations
Robotic Palletizer Device
All-in-one
palletizing
solution

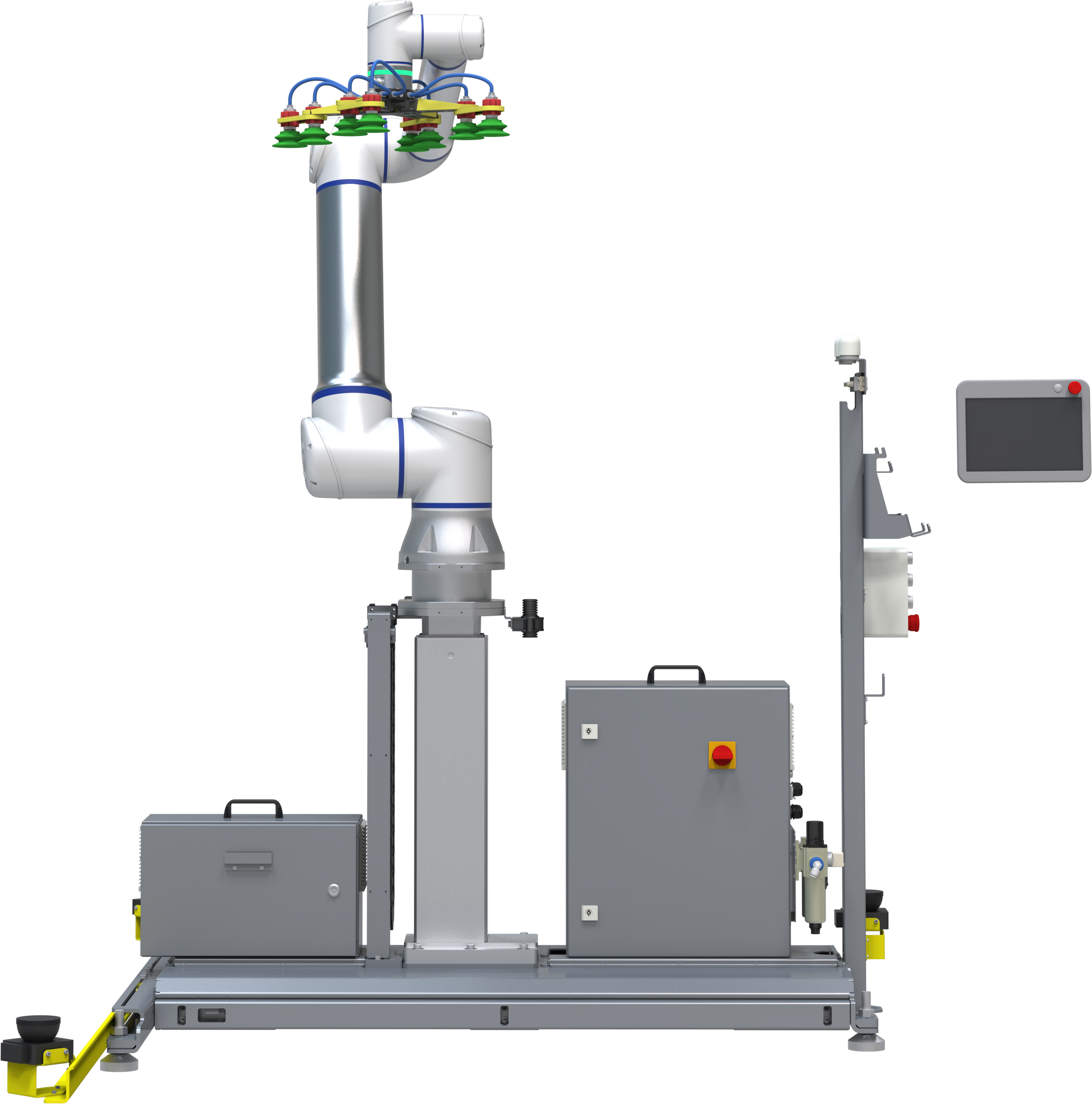

Robotic Palletizer Device
AXL Robotic Palletizer is a turnkey
product based on Elite Robots’
palletizing station.
Enhanced Safety.
Fast Setup.
Zero Programming.
Features
Robot arm
CS620 (20kg payload);
CS625 (25kg payload)
Gripping tool
Optional, customizable
Pallet position
detection sensors
During palletizing, an unexpected movement of the pallet will trigger a pause in the operation.
The operation will resume automatically after the pallet is correctly positioned manually.
Electric and
pneumatic
Components control cabinet.
Radar Sensor
For proximity detection.
On-site
operation
panel
12.1-inch touch screen,
emergency stop button,
indicator light.
Communication
panel
Built-in mini
switch USB port.

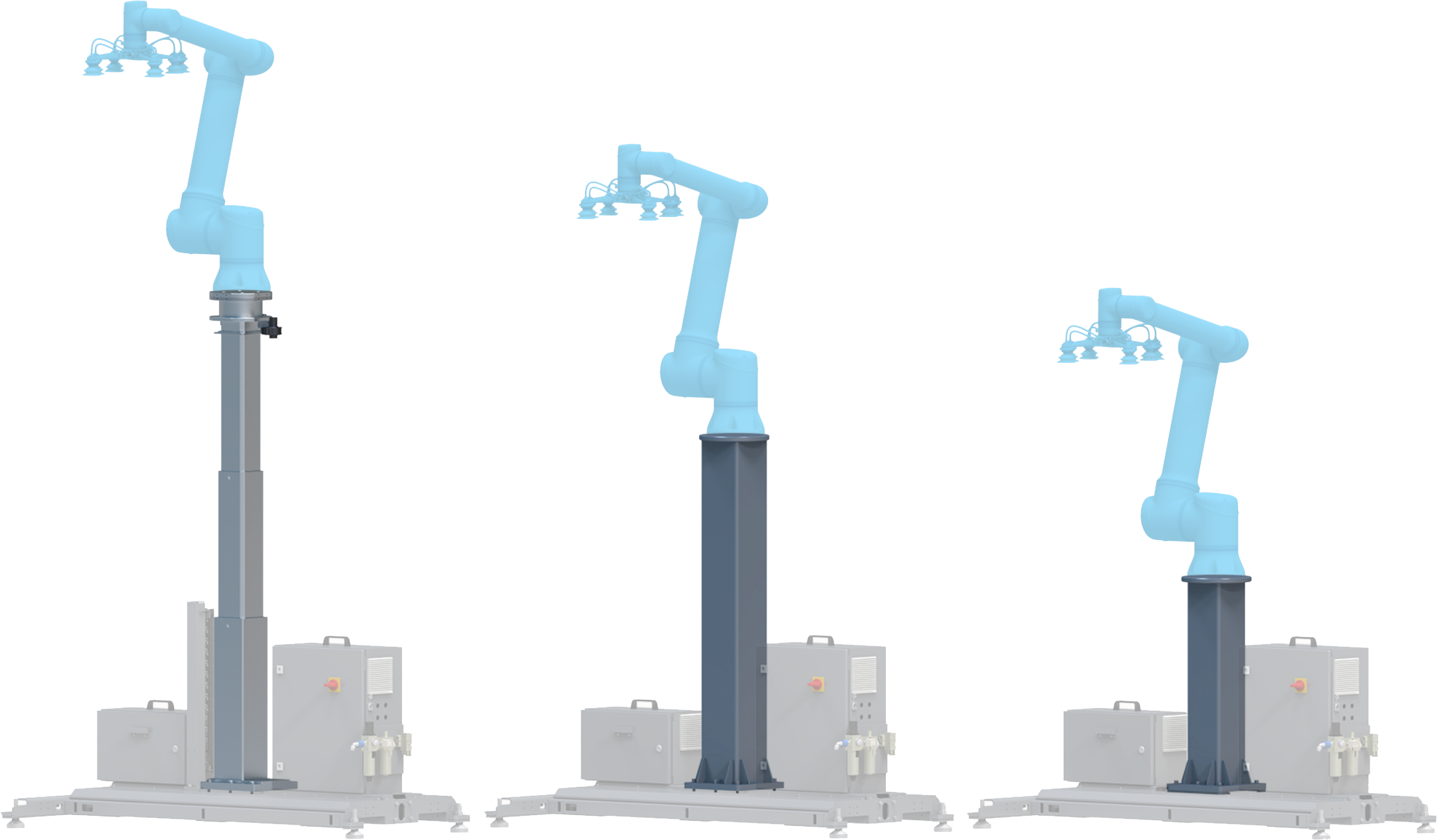

Built-in lifting
column
Stroke: 650/900mm
Max Height: 2600mm
No programming
skills required
Featuring a fast installation just
right off the box, this cost-effective,
safe and easy to use palletizer can
accommodate diverse payloads
and pallet heights with ease and
adaptability.

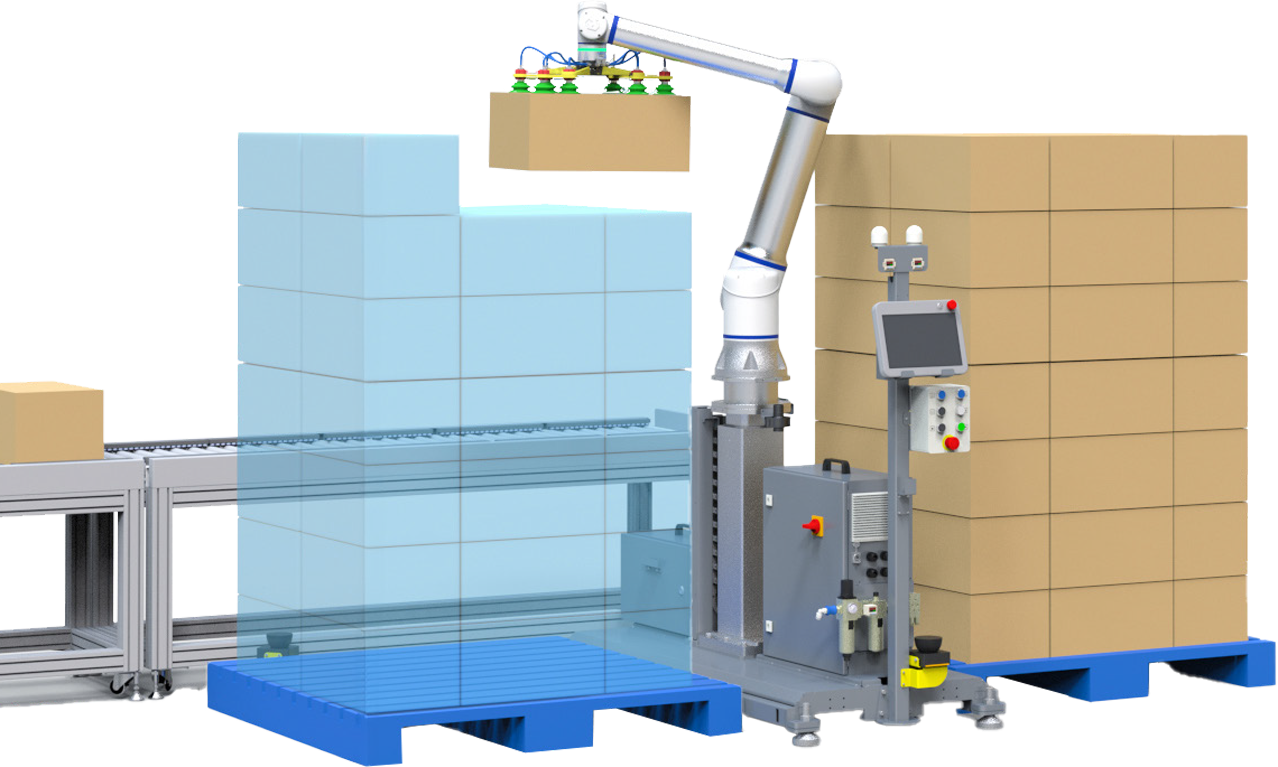

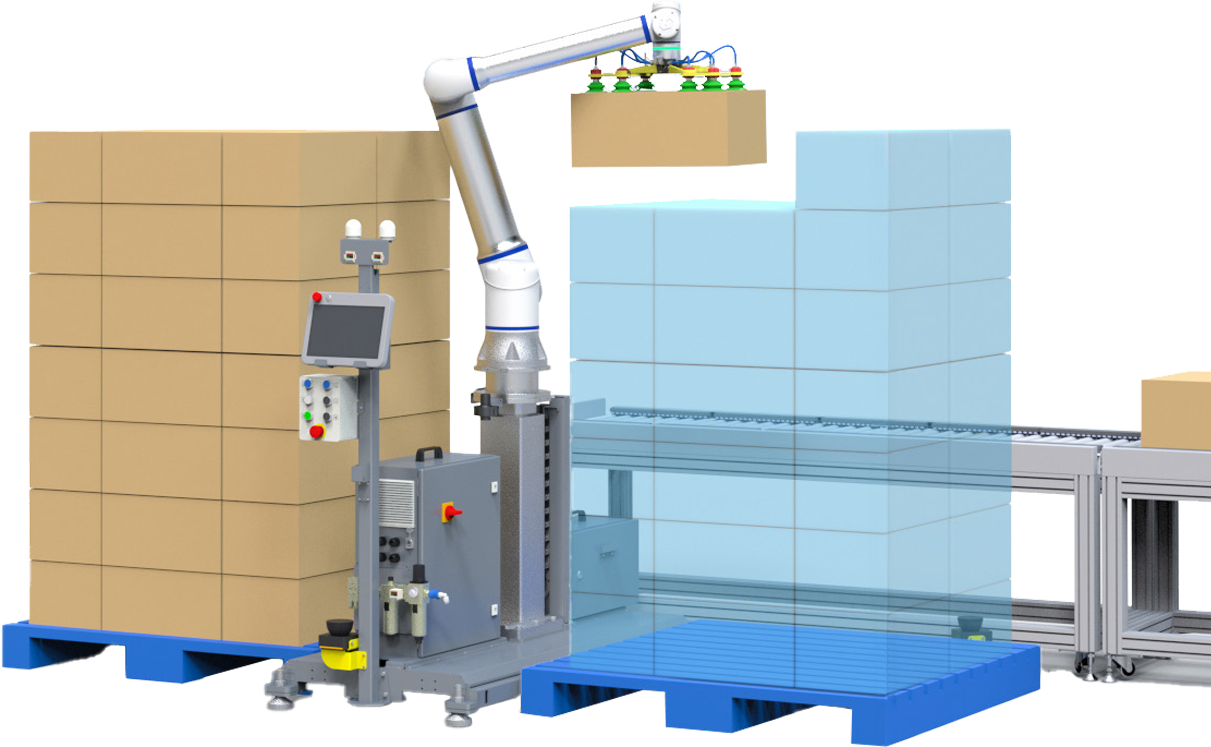

Single and double track palletizing
are both supported.

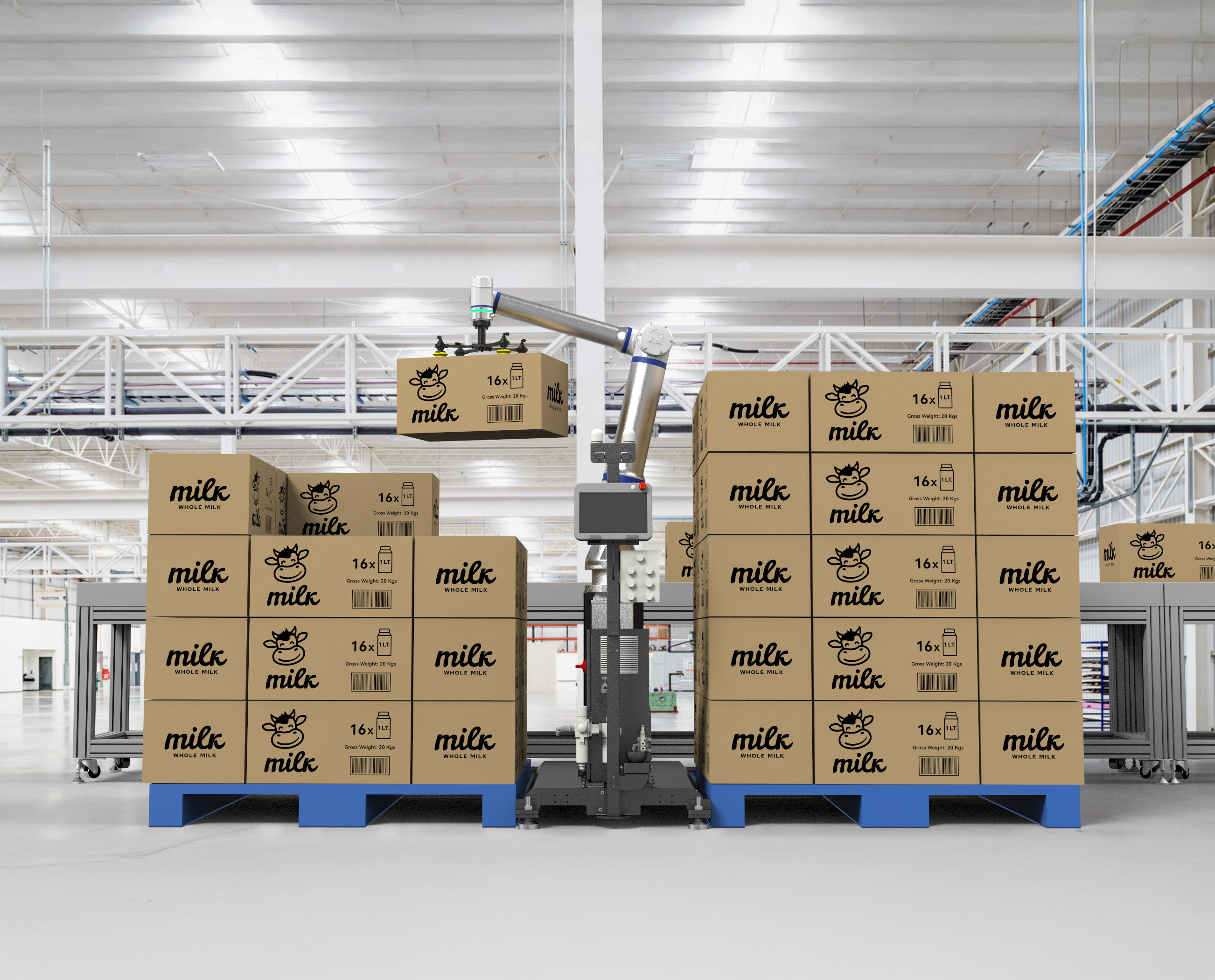

Robotic Palletizer Device
For high Throughput
flat-shaped products
Specifications
Manual
Watch Video

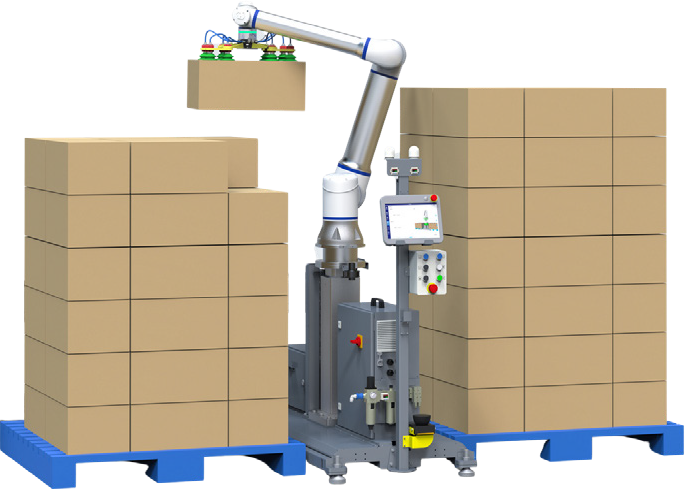

Robotic Palletizer Device
The best choice for your
end-of-line stacking operations
24/7 - 365
Uninterrupted operation 24 hours per day 7 days a week. Axl Imperial’s parts are designed and assembled to allow continuous operation, since industry never sleeps. The best choice for your end-of-line stacking operations.
